Product Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: AFK
Certification: CE
Model Number: RW14
Payment & Shipping Terms
Minimum Order Quantity: 1 - 9 Pieces
Price: Negotiable
Packaging Details: Each piece with a PP bag first, then put in a small box, outside is in carton.
Supply Ability: 2000 Piece/Pieces per Week
Material: |
316L SS |
Maximum Inlet Pressure: |
50, 100PSI |
Output Pressure: |
0-10, 0-25, 0-50, 0-100Kpa |
Working Temperature: |
-23~+230 Deg C |
Applied Gas: |
Medium Flow Gas And Liquid |
Bonnet Material: |
Ss316L |
Seat: |
PCTFE |
Spring: |
Ss316L |
O-ring: |
Viton |
Strainer: |
316L (um) |
Port: |
Shenzhen |
Material: |
316L SS |
Maximum Inlet Pressure: |
50, 100PSI |
Output Pressure: |
0-10, 0-25, 0-50, 0-100Kpa |
Working Temperature: |
-23~+230 Deg C |
Applied Gas: |
Medium Flow Gas And Liquid |
Bonnet Material: |
Ss316L |
Seat: |
PCTFE |
Spring: |
Ss316L |
O-ring: |
Viton |
Strainer: |
316L (um) |
Port: |
Shenzhen |

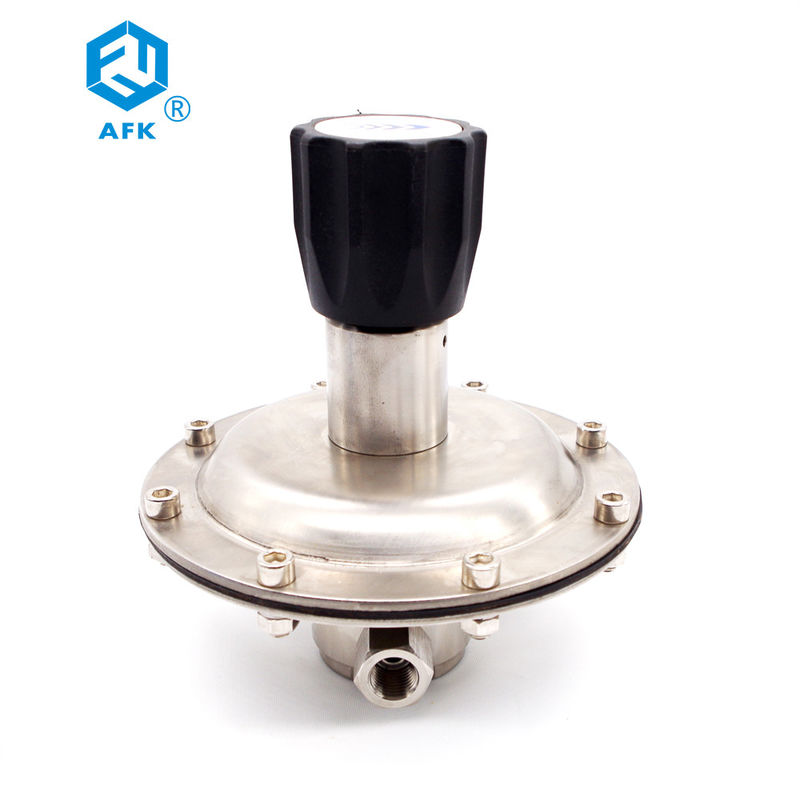

RW14 Series Stainless Steel Micro pressure regulator, single stage diaphragm reducing pressure structure, Rubber diaphragm pressure transmission, designed for micro pressure, stable outlet pressure, applied to medium flow gas system and liquid.
|
Maximum Inlet Pressure
|
50, 100psig
|
||
|
Outlet Pressure Ranges
|
0-10, 0-25, 0-50, 0-100Kpa
|
||
|
Safety test pressure
|
1.5 times maximum inlet pressure
|
||
|
Operating Temperature
|
-40°F to 446°F / -40°c to 230°c
|
||
|
Leakage Rate Against Atmosphere
|
2*10-8atm cc/sec he
|
||
|
Cv value
|
1.1
|
||
|
Body
|
ss316L
|
||
|
Bonnet
|
ss31L
|
||
|
Diaphragm
|
NBR, VITON
|
||
|
Strainer
|
316L(10mm)
|
||
|
Seat
|
PCTFE,PTEE, NBR
|
||
|
Spring
|
ss316L
|
||
|
Plunger valve core
|
ss316L
|
||
|
|
Body material
|
Body Ports
|
Inlet pressure
|
Outlet pressure
|
|
Inlet connection
|
|
|
|
RW14
|
L
|
B
|
D
|
G
|
G
|
00
|
00
|
P
|
|
|
L:316L
|
A
|
F:50psi
|
G:100Kpa
|
G:Kpa
|
00: 1/4"NPT F
|
00: 1/4"NPT F
|
P: panel
|
|
|
B:304
|
B
|
E:100psi
|
H:50Kpa
|
W: no
|
01:1/4"NPT M
|
01:1/4"NPT M
|
R: safety valve
|
|
|
|
D
|
G:200psi
|
K:25Kpa
|
|
02:3/8"NPT F
|
02:3/8"NPT F
|
|
|
|
|
G
|
|
L:10Kpa
|
|
03:3/8"NPT M
|
03:3/8"NPT M
|
|
|
|
|
J
|
|
|
|
04:1/2"NPT F
|
04:1/2"NPT F
|
|
|
|
|
M
|
|
|
|
06:3/4"NPT F
|
06:3/4"NPT F
|
|
|
|
|
|
|
|
|
08:1"NPT F
|
08:1"NPT F
|
|
