Product Details
Place of Origin: Chain
Brand Name: AFKLOK
Certification: CE
Model Number: WL400
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: General packaging
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000
After-sales Service Provided: |
Online Support |
Material: |
Stainless Steel,316 |
Warranty: |
1 Year |
Application: |
Industry Equipment |
Color: |
Silver |
Working Pressure: |
-40℃~230℃ |
Certificate: |
ISO9001 CE |
Max Inlet Pressure: |
3000,2200PSI |
Outlet Pressure: |
25,50,100,150,250PSI |
CV: |
0.14 |
After-sales Service Provided: |
Online Support |
Material: |
Stainless Steel,316 |
Warranty: |
1 Year |
Application: |
Industry Equipment |
Color: |
Silver |
Working Pressure: |
-40℃~230℃ |
Certificate: |
ISO9001 CE |
Max Inlet Pressure: |
3000,2200PSI |
Outlet Pressure: |
25,50,100,150,250PSI |
CV: |
0.14 |

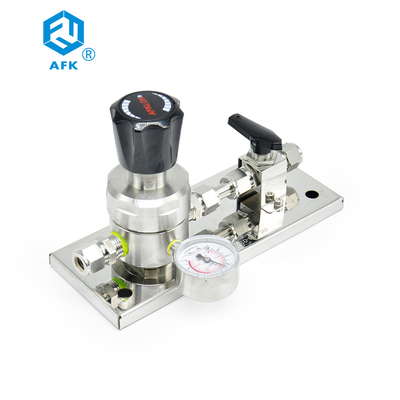

1.6Mpa Pressure Reducing Regulators Single Gauge With Panel Ball Valve
It is Applied to the gas pipeline terminal, easy to use the control gas flow size. Maximum input pressure up to 20.7Mpa (3000 psig), corrosion resistance, clean shop assembly test, and suitable for laboratory, gas analysis and otheihigh purity gas.
Pressure reducing control valves with panels are designed to regulate and maintain a specific pressure level in a system by controlling the flow of fluid or gas. Here are some features and characteristics of pressure reducing control valves with panels:
| Regulation accuracy | Pressure reducing control valves with panels are designed to maintain a consistent and accurate pressure level within a system, even when there are fluctuations in the input pressure. |
| Pressure range | These valves are available in a range of pressure ratings, from low to high, to accommodate different applications and system requirements. |
| Panel-mounted | Pressure reducing control valves with panels are often panel-mounted to provide a compact and convenient solution for controlling pressure in a system. |
| Easy installation | Panel-mounted pressure reducing control valves are designed for easy installation. They can be easily mounted on a control panel or a wall, and are typically pre-wired for quick and easy connection to power and control signals. |
| Control features | These valves often feature a variety of control options, such as manual or automatic control, remote control, and digital or analog control modes. |
| Material construction | Pressure reducing control valves with panels are typically made of durable materials such as stainless steel or brass, which ensures a long service life and resistance to corrosion and wear. |
| Safety features | These valves often come equipped with safety features such as pressure relief valves, overpressure protection, and fail-safe mechanisms to prevent damage to the system or injury to personnel. |
| Customization | Pressure reducing control valves with panelscan be customized to meet specific system requirements. Customization options may include different pressure ratings, flow rates, materials, and control options. |
| Energy efficiency | Pressure reducing control valves with panels are designed to operate with high energy efficiency, which helps to reduce operating costs and minimize environmental impact. |
| Versatility | These valves can be used in a variety of applications, including gas and liquid pressure control in industrial processes, HVAC systems, water treatment, and many others. |
Features of Panel Control Pressure Reducing Valve
Materials of Construction
Spec fications of Panel type pressure reducing regulator
Ordering Information of Terminal Secondary Pressure Reducing Regulator Assembly
| WL4 | 1 | 1 | 1 | S | H | 1 | 1 | -N2 |
| Series | Function Options | Outlet Connection |
Inlet Connection | Body Material |
Input Pressure |
Outlet Pressure |
Gauge | Gas Options |
| WL4 Terminal Secondary Pressure Reducing Regulator Assembly |
1.With emptying,purging distribution function |
1/4"NPT(F) | 1/4"Welding | stainless steel | 3000psi | 25psi | MPa | Blank: None |
| 2.Without Emptying, purging distribution function |
1/4"Tube fitting | 1/4"NPT(M) | nickel plated brass | 2200psi | 50psi | Bar/psi | N2:nitrogen | |
| 3.Emptying,purging distribution+pressure sensor |
3/8"NPT(F) | 3/8"Welding | 1000psi | 100psi | psi/KPa | O2:oxygen | ||
| 4.With pressure sensor | 3/8"Tube fitting | 3/8"NPT(M) | Other | 150psi | Other | H2:hydrogen | ||
| 5.Others | 1/2"NPT(F) | 1/2"Welding | 250psi | C2H2:acetylene | ||||
| 1/2"Tube fitting | 1/2"NPT(M) | Other | CH4:methane | |||||
| Other | 1/4"Tube fitting | Ar:argon | ||||||
| 3/8"Tube fitting | He:helium | |||||||
| 1/2"Tube fitting | Air:air | |||||||
| Other |
Engineering case
Applicable Scenarios
Packing & Delivery
FAQ
Q. Are you manufacturer?
A. Yes, we are manufacturer.
Q. What is lead time?
A. 3-5days. 7-10 days for 100pcs
Q. How do I order?
A. You can order it from Alibaba directly or send us a inquiry. We will reply you within 24 hours
Q. Do you have any certificates?
A. We have CE certificate.
Q. What materials do you have?
A. aluminium alloy and chrome plated brass are available. The picture shown is chrome plated brass. If you need other material, pls contact us.
Q. What is maximum inlet pressure?
A. 3000psi (about 206bar)
Q. How do I confirm inlet connnection for cylidner?
A. Pls check cylinder type and confirm it. Normally, it is CGA5/8 male for Chinese cylinder. Other cylidner adapter are also available e.g CGA540, CGA870 etc.
Q. How many types for connecting cylinder?
A. Down way and side way. (you can choose it)
Q. What is product warranty?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
