Product Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: AFK
Model Number: 2A-40
Payment & Shipping Terms
Minimum Order Quantity: >=10 Pieces
Price: Negotiable
Packaging Details: PP bag+white box
Supply Ability: 300000 Piece/Pieces per Week
Application: |
Water Treatment |
Material: |
Brass |
Temperature Of Media: |
Low Temperature |
Pressure: |
Low Pressure |
Power: |
Solenoid |
Media: |
Water |
Port Size: |
1 1/2 |
Structure: |
Diaphragm |
MOQ: |
1 Year |
Voltage: |
12VDC, 220VAC, 24VAC, 24VDC, 110VAC |
Working Pressure: |
0-10bar |
Media Temperature: |
-5-80 Degree |
Valve Body: |
Brass, Stainles Steel |
Seal: |
NBR |
Connection: |
BSP, NPT |
Shipping Way: |
Express, Sea, Air |
Warranty: |
12months |
Standard Or Nonstandard: |
Standard |
Port: |
Shenzhen |
Application: |
Water Treatment |
Material: |
Brass |
Temperature Of Media: |
Low Temperature |
Pressure: |
Low Pressure |
Power: |
Solenoid |
Media: |
Water |
Port Size: |
1 1/2 |
Structure: |
Diaphragm |
MOQ: |
1 Year |
Voltage: |
12VDC, 220VAC, 24VAC, 24VDC, 110VAC |
Working Pressure: |
0-10bar |
Media Temperature: |
-5-80 Degree |
Valve Body: |
Brass, Stainles Steel |
Seal: |
NBR |
Connection: |
BSP, NPT |
Shipping Way: |
Express, Sea, Air |
Warranty: |
12months |
Standard Or Nonstandard: |
Standard |
Port: |
Shenzhen |

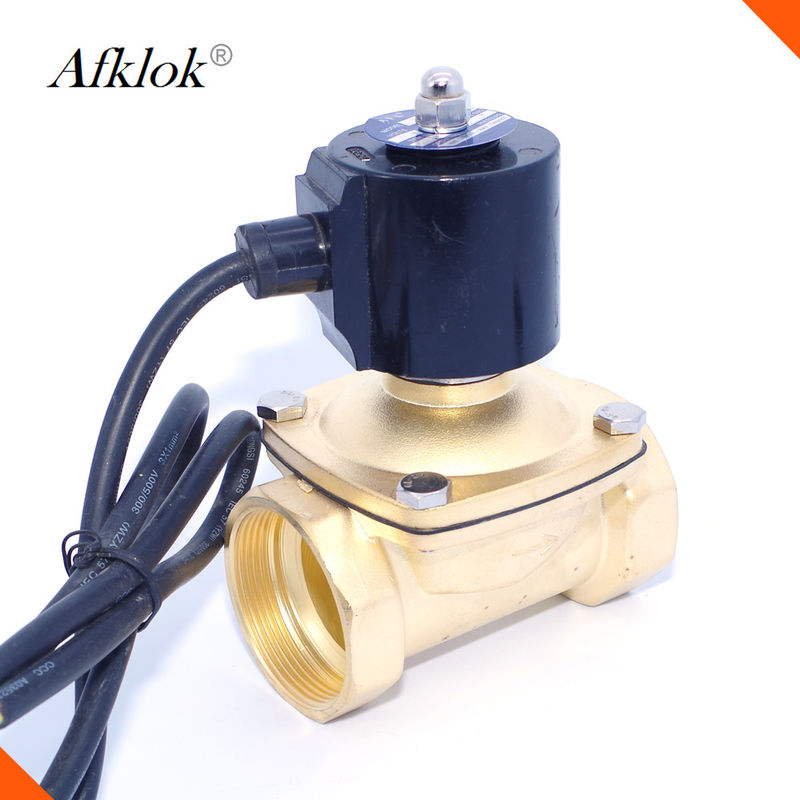

high speed brass/stainless steel 3/4 solenoid valve 24vac
| Ambient temperature | 10degree-50 degree | Media temperature | 0-60 degree | ||
| Working pressure | 1Mpa | Media | water | ||
| boy material | brass/stainless steel | ||||
| Power Supply | φbelow 32 | AC220V 15VA,DC24V 15 W | |||
| φ40/50 | AC220V 15VA,DC24V 15 W | ||||
| Allow the fluctuation | 10%+10% | ||||
| Insulation grade | B class | Insulation | IP68 | ||
| Closing and opening speed | 1 second | Application of life | 100 thousand time | ||
| Install way | The direction of media flow and arrow keep the same. The coil vertically upward, the working media clean and no particle impurities | ||||
1. What is MOQ?
Currently no limited.
2. How long is delivery time?
It's in stock for standard size.
3. What's your payment method?
TT, Western Union, Paypal, LC are accetable.
4. What does Shenzhen Wofly do?
it's a professional manufacturer of all kinds of valves. Own brand AFK.
5.Why Should You Choose Us?
Because we have 30 Years of Specialised Hydraulic Knowledge
With more than 30 years of knowledge in serving the marine and gas industry, we are able to understand exactly what you need.
Because we have a huge Product Stock Range
With more than 8,000 line items in our inventory, we are able to meet your hydraulic component requirements.
Because we understand you need the items now
We understand that you want the items fast. We are committed to delivering ex-stock items within 3 working days.
Because we ship our Products globally
With our experience in serving the global community, we are well versed in preparing various documents that you require for export declarations.
Because we are ISO 9001 Certified.
6. What is warranty?
1 year
