Product Details
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: TAM
Payment & Shipping Terms
Minimum Order Quantity: 1~10
Price: Negotiable
Packaging Details: Expotrt Packing
Delivery Time: 1WEEK
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000PC
Material: |
Stainless Steel,316L,Stainless Steel 304 Or 316,Stainless Steel304 316L |
Shape: |
Reducing |
Head Code: |
Hexagon |
Connection: |
Male |
Technics: |
Forged |
Medium: |
Gas |
Warranty: |
1 Year |
Material: |
Stainless Steel,316L,Stainless Steel 304 Or 316,Stainless Steel304 316L |
Shape: |
Reducing |
Head Code: |
Hexagon |
Connection: |
Male |
Technics: |
Forged |
Medium: |
Gas |
Warranty: |
1 Year |

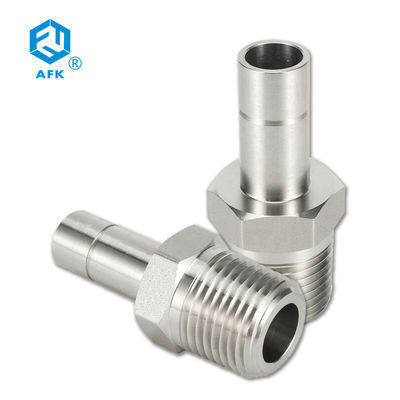

| Product Name | Tube turn pipe male tube adapter |
| Product Name | stainless steel |
| Color | nickel white |
| Standard | DIN GB ISO JIS BA ANSI |
| Brade | AFK |
| Materials | 316 |
| Used | Chemical and Petrochemical |

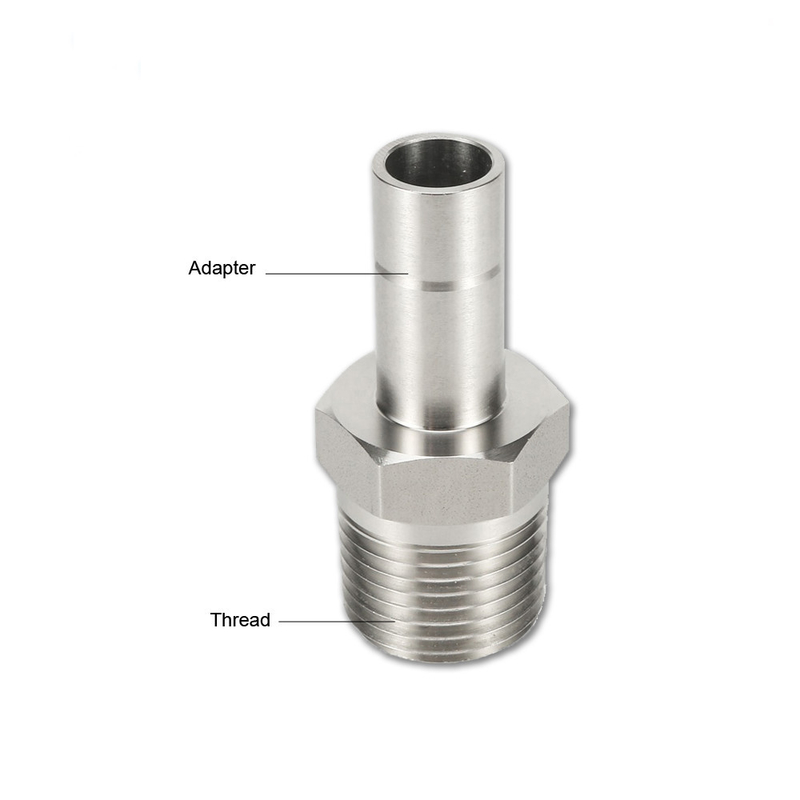

MALE TUBE ADAPTER
(METRIC)
|
T TUBE O.D. |
PT/NPT MALE PIPE SIZE |
CATALOG NUMBER |
A | B | E | F |
| 6 | 1/8 | TAM-6-1 | 32.8 | 10 | 4.6 | 12 |
| 6 | 1/4 | TAM-6-2 | 38.1 | 13 | 4.6 | 14 |
| 8 | 1/4 | TAM-8-2 | 39.1 | 13 | 6.4 | 14 |
| 10 | 1/4 | TAM-10-2 | 39.9 | 13 | 7.1 | 14 |
| 10 | 3/8 | TAM-10-3 | 40.6 | 14 | 7.7 | 17 |
| 12 | 1/4 | TAM-12-2 | 46.5 | 13 | 7.1 | 14 |
| 12 | 3/8 | TAM-12-3 | 51.8 | 14 | 9.1 | 17 |
| 12 | 1/2 | TAM-12-4 | 74.7 | 17 | 9.1 | 22 |
| 1/4 | 1/8 | TAM-02-1 | 31.8 | 10 | 4.8 | 12 |
| 1/4 | 1/4 | TAM-02-2 | 37.1 | 13 | 4.8 | 14 |
| 1/4 | 3/8 | TAM-02-3 | 37.8 | 14 | 4.8 | 17 |
| 1/4 | 1/2 | TAM-02-4 | 43.4 | 17 | 4.8 | 22 |
| 3/8 | 1/8 | TAM-03-1 | 33.5 | 10 | 7.0 | 12 |
| 3/8 | 1/4 | TAM-03-2 | 38.9 | 13 | 7.0 | 14 |
| 3/8 | 3/8 | TAM-03-3 | 39.6 | 14 | 7.0 | 17 |
| 3/8 | 1/2 | TAM-03-4 | 45.2 | 17 | 7.0 | 22 |
| 1/2 | 1/4 | TAM-04-2 | 44.5 | 13 | 10.0 | 14 |
| 1/2 | 3/8 | TAM-04-3 | 45.2 | 14 | 10.0 | 17 |
| 1/2 | 1/2 | TAM-04-4 | 50.8 | 17 | 10.0 | 22 |
| 5/8 | 1/2 | TAM-05-4 | 52.3 | 17 | 12.7 | 22 |
| 3/4 | 1/2 | TAM-06-4 | 52.3 | 17 | 15.0 | 22 |
| 3/4 | 3/4 | TAM-06-6 | 52.3 | 19 | 15.0 | 27 |
| 1 | 3/4 | TAM-08-6 | 58.7 | 19 | 20.0 | 27 |
| 1 | 1 | TAM-08-8 | 66.0 | 22 | 20.0 | 35 |
|
|
|
|
