Product Details
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: NV
Payment & Shipping Terms
Minimum Order Quantity: 1~10
Price: Negotiable
Packaging Details: Expotrt Packing
Delivery Time: 1WEEK
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000PC
Material: |
Stainless Steel,SS304 |
Media: |
Gas,Air |
Size: |
1/2''---4" |
Valve Type: |
2 Way |
Name: |

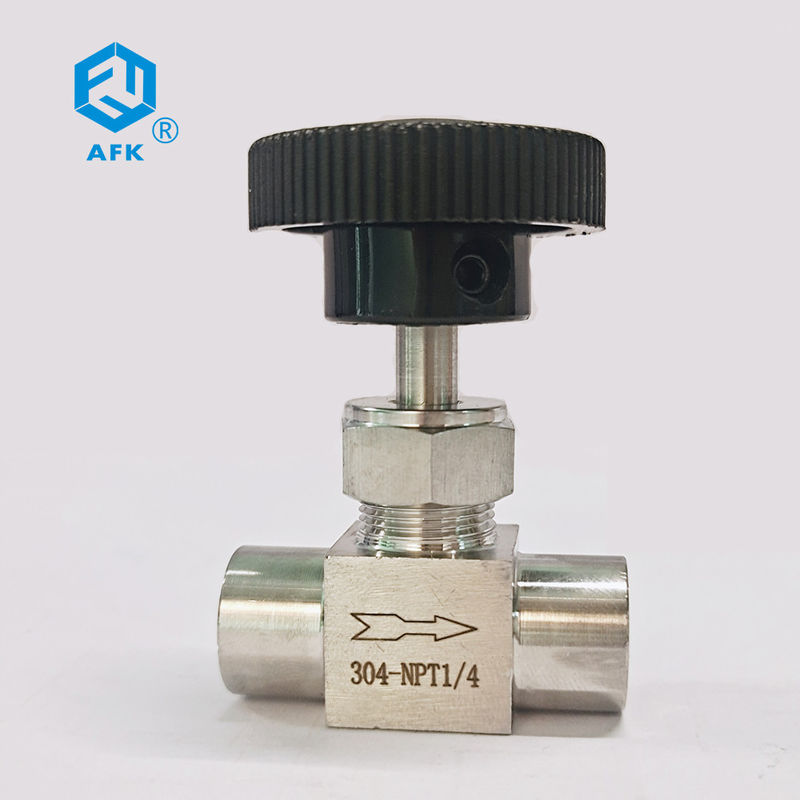

High Pressure Needle Valve |
Working Pressure: |
6000psig |
Material: |
Stainless Steel,SS304 |
Media: |
Gas,Air |
Size: |
1/2''---4" |
Valve Type: |
2 Way |
Name: |
High Pressure Needle Valve |
Working Pressure: |
6000psig |
characteristic
The forging body has straight through and angle needle valves to choose from
The body is made of stainless steel SS316 / 316L, and the maximum working pressure is 6000psig (413 bar) at 37 ℃ (10 (TF)
Panel mountable
Filler standard material tfm1600
100% factory test
Selection table
| C | NV | 1 | 1- | S6- | 02 | A | T | |
| Classification | Product Name | Valve Type | Valve Paterial | Material | Size(Fractional) | Size(Mrtric) | Connection Type | Packing |
| C:Valve | NV:Needle Vlave | 1:Forged |
1:Inline Pattern |
S6:SS316
|
02:1/8"
|
4:4mm
|
A:AFK tbue end
|
T:TFM1600 |
| 2:Angle Pattern | S6:SS316L |
04:1/4"
|
6:6mm |
FR:female bspt thread
|
||||
|
06:3/8" |
8:8mm |
MR:male bspt thread |
||||||
| 08:1/2" |
10:10mm |
MN:Male NPT Thread |
||||||
| 12:12mm | FN:female NPT thread |
Dimension table of internal thread needle valve
| Type | Conn./Size | Orifice | Dimensions(mm) | ||||||||
| Inlet/Outlet | mm | In. | A | B | C | D | E | F | |||
| Female Thread | Fraction | 1/8" | 4 | 0.16 | 46 | 23 | 72.7 | 36 | 24.2 | 11.5 | |
| 1/4" | 4 | 0.16 | 46 | 23 | 72.7 | 36 | 24.2 | 11.5 | |||
| 3/8" | 6 | 0.24 | 52 | 26 | 86.5 | 50 | 28.4 | 13.0 | |||
