Product Details
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: NV
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Material: |
Stainless Steel,SS304 |
Pressure: |
High Pressure,3000PSI |
Temperature Of Media: |
Medium Temperature |
Media: |
Gas |
Product Name: |
Needle Valve 6000 Psi 3000 Psi |
Color: |
Silver |
Valve Type: |
2 Way |
Material: |
Stainless Steel,SS304 |
Pressure: |
High Pressure,3000PSI |
Temperature Of Media: |
Medium Temperature |
Media: |
Gas |
Product Name: |
Needle Valve 6000 Psi 3000 Psi |
Color: |
Silver |
Valve Type: |
2 Way |

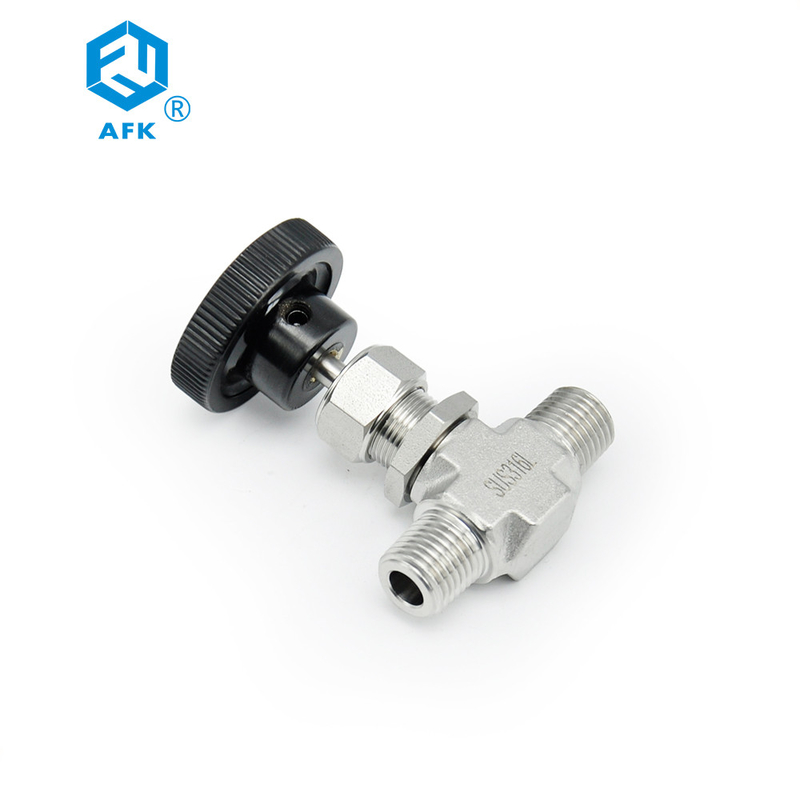

Features of 3000psi Needle Valve
Forged body availble with inline and angle pattern
Max.working pressure to 6000psig(413bar)at 37℃(100℉)
Panel mountable
TFM 1600 packing as standard
100% factory tested
| Item | Part Description | Qty. | Material | |
| 1 | Handle | 1 | Phenolic Resins | |
| 2 | Locking Nut | 1 | SS304 | |
| 3 | Stem | 1 | SS316/316L | |
| 4 | Packing Nut | 1 | SS316/316L | |
| 5 | Upper Gland | 1 | SS316/316L | |
| 6 | Upper Packing | 1 | TFM1600 | |
| 7 | Lower Packing | 1 | TFM1600 | |
| 8 | Lower Gland | 1 | SS316/316L | |
| 9 | Panel Nut | 1 | SS304 | |
| 10 | Body | 1 | SS316/316L | |
| 11 | Stem Tip | 1 | SS630 |
ORDERING INFORMATION of Stainless Steel Needle Valve
| C | NV | 1 | 1- | OF- | S6- | 02 | A | T | |
| Classiflcation | PRODUCTNAME | VALVE TYPE | VALVE PATTERN | SUIFACE TREATMENT | MATERIAL | SIZE(FRACTIONAL) | SIZE(MRTRIC) | CONNECTION TYPE | PACKING |
| Valve | NV :Needle Valve | 1 :Forged | 1 :Inline Pattern |
OF:Oil Free | S6:SS316 | 02:1/8" | 4:4mm | A :AFK Tube end | T:TFM1600 |
| 2 :Angrepattern | S6 L:SS316L | 04:1/4" | 6:6mm | MR :Male BSPT Thread | |||||
| 06:3/8" | 8:8mm | FR :Female BSPT Thread | |||||||
| 08:1/2" | 10:10mm | MN :Male NPT Thread | |||||||
| 12:12mm | FN :Female NPT Thread | ||||||||
CLEANING
Ultrasonic cleaning is applied to all products
Drying machine is functioned to remove the water stain on products
ASSEMBLING AND TESTING
All valves are assembled in clean and well-lighted workplace
To reach 100% oil-off, surface coating is applied on packing nut, stem, and valve end as lubrication
All JPE needle valve are tested by clean and dry nitrogen 1000 psig (69 bar) in factory
PACKING AND MARKING
To ensure the tread and other critical surfaces are clean, hat cap is installed to cover parts gap
To ensure products are clean before use, each product is packed in an individual sealed plastic bag
Product code, quantity and information are indicated on the packing box
FAQ
1. What’s the MOQ?
A: All products are in stock, MOQ is 1 pcs, Generally according to the requirements of customers, no matter
how many we can accept.
2. Do you test all goods before delivery?
A: We have the stric QC process and offer you the videos of all step.
3. If any question when I got the product,how to solve it?
A: The product have warranty and we will offer you the online or video technical support.
4. Do you accept OEM order? (Can I make in my brand or any sticker? )
A: Yes, MOQ is 100 piece.
5. How long will the shipment take?
A: If it's express, it will take 3~7days.If it by sea,it will take about 20~30days.
6. What kinds of payment do you accept?
A: T/T,Western Union, Paypal, credit card and trade assurance on Alibaba.
