Product Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: AFK
Certification: CE
Model Number: BVJ12OD
Payment & Shipping Terms
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: color box packing
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300000 Piece/Pieces per Week
Pressure: |
Low Pressure |
Port Size: |
12mm |
Size: |
3, 6mm, 8mm, 10mm, 1/4, 1/2, 3/8 |
End Connection: |
Tube OD, NPT Female, NPT Male |
Working Pressure: |
1000PSI, 3000PSI |
Working Temperature: |
10-65 Degree |
Pressure: |
Low Pressure |
Port Size: |
12mm |
Size: |
3, 6mm, 8mm, 10mm, 1/4, 1/2, 3/8 |
End Connection: |
Tube OD, NPT Female, NPT Male |
Working Pressure: |
1000PSI, 3000PSI |
Working Temperature: |
10-65 Degree |

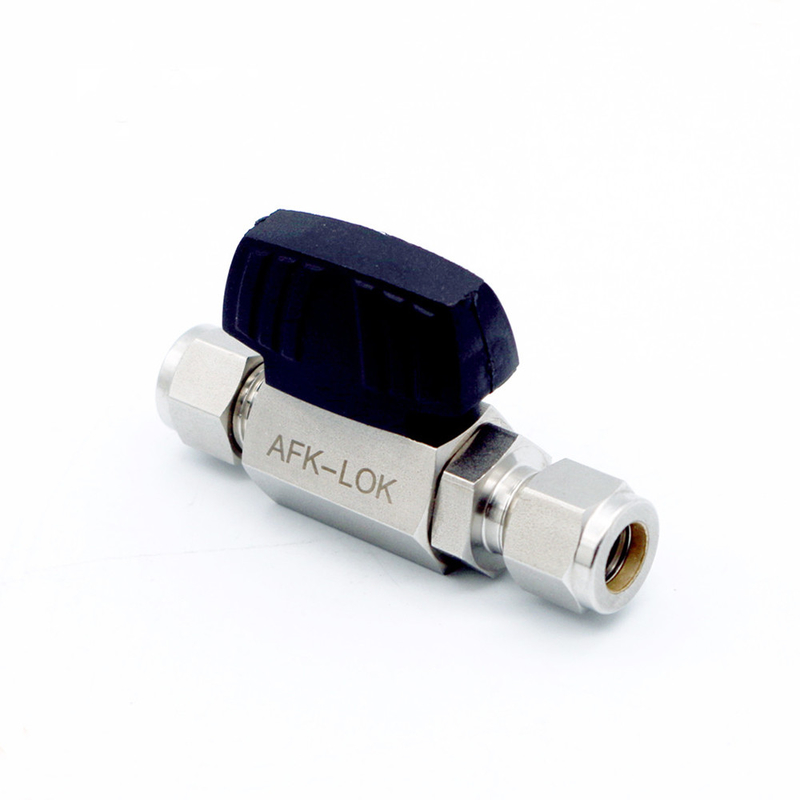

Low Pressure 1000PSI compression fitting Double Ferrule Union Ball Valve
Technical Parameters
Brand: AFK
Model: BVJ-O.D.
Size: 6mm, 8mm, 10mm, 12mm, 1/4", 3/8", 1/2", 3/4"
End Connection: O.D.(ferrule)
Body Material:ss316
Seal Material: PTFE
Medium: gas, water, air, oil.
Max.working pressure:1000PSI
Features:
Simple in structure, convenient in maintenance.
Handle to the flow direction of medium instructions.
A variety of handle colors to choose from.
The handle switch positioning accuracy.
The valve switch low operating torque.
Manual, pneumatic or electric drive is optional.
Cock switch control valve, replace installation is convenient.
Type O ring seal design, sealed performance is good.
Straight-through type flow, small pressure drop.
With the downstream discharge port.
